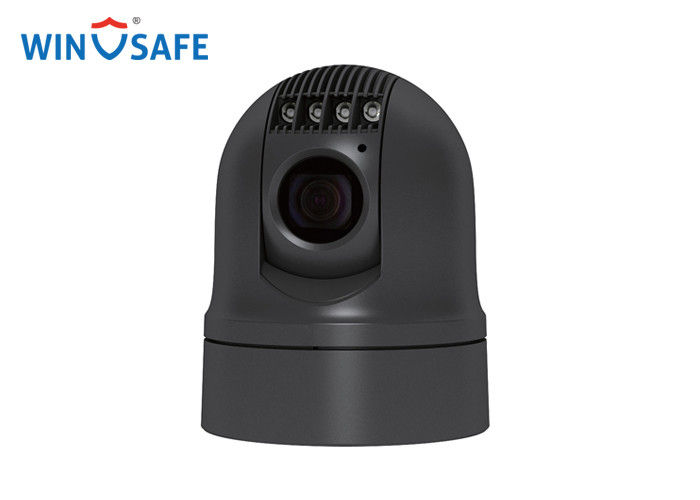

Full Digital Video Vehicle PTZ Camera HD High Performance Built-In Defogger

चीन Full Digital Video Vehicle PTZ Camera HD High Performance Built-In Defogger आपूर्तिकर्ता

बड़ी छवि :  Full Digital Video Vehicle PTZ Camera HD High Performance Built-In Defogger

उत्पाद विवरण:

Place of Origin: CHINA
ब्रांड नाम: WINSAFE
प्रमाणन: CE/FCC
Model Number: CAHC-A2001-B

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5 - 8 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000PCS/Month
Contact Now
विस्तृत उत्पाद विवरण
Comm. Interface: RS-485 Video Interface: HD-SDI
Address: 0-255 Preset: 256
IR Wave Length: 850nm/950nm Range: 60m/30m
Switch: Auto/Manual Angle Field of View: 59.4°-2.9°

Full Digital Video Vehicle PTZ Camera HD High Performance Built-In Defogger





Features





※ 2.14MP HD sensor, supporting 1080p,1080i,720p output, full digital video technology
※ HD-SDI for transfer of HD video
※ Efficient 60M IR lighting, excellent night vision performance
※ Portable with compact design & high reliability
※ Optional damping system
※ WDR supported
※ Built-in defogger
※ Self-adaption of Protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off which low power supply





Technical Specification



Model No. CAHC-A2001-IR
Camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixel 2.14MP
Video Output HD: 1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25
Min.Illumination Color: 0.5Lux; B/W: 0.1Lux
White Balance Auto
Focus Auto / Manual / PTZ Trigger
Exposure Auto / Shutter priority
S/N Ratio 50 Db
BLC On / Off
WDR On / Off
Digital Noise Reduction 1 - 5 Steps / OFF
Day/Night Auto / Manual
Lens
Optical Zoom 20X
Digital Zoom 12X
Focal f = 4.7 - 94mm
IRIS F 1.6 - F3.5
Angle Field of View 59.4° - 2.9°
PTZ
Pan Range 360° Continuous
Pan Speed Control speed: 0.3° - 80°/s, adjustable; Preset speed:80°/s
Tilt Range - 15 ° - 90°( Auto Flip)
Tilt Speed Control speed: 0.3° - 35°/s, adjustable; Preset speed: 35°/s
Preset Number 256
Preset Precision ±0.2°
IR Light
IR Wave Length 850nm / 940nm
Range 60m(850nm) / 30m(940nm)
Switch Auto / Manual
General
OSD Lanuage English
Comm. Interface RS-485
Video Interface HD: HD-SDI
Protocol 2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
Address 0-255
Voltage DC10.8-28V
Power 8W(Standby); 25W(Aux lights ON, defogger ON, and P/T runing continuously)
Working Temperature -30°C - +65°C
IP Code Magnet / Fixed / Fixed with Damper
Dimensions Φ130(mm) x 163(mm) w/o damper; Φ140z(mm) x 199(mm) with damper
Weight Fixed Mount: 1.7kg; Magnet Mount: 1.6kg; Fixed with damper: 2.1kg









Dimensional Drwing





Full Digital Video Vehicle PTZ Camera HD High Performance Built-In Defogger



Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
